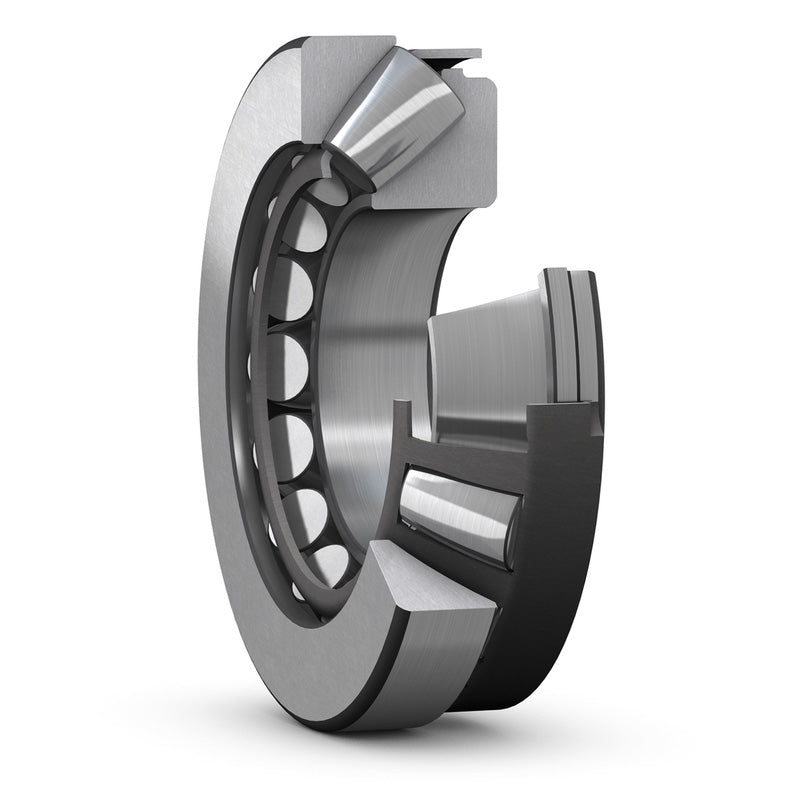

Spherical Roller Thrust Bearings - 85 mm ID, 150 mm OD, 39 mm Width
$330.00 USD
$330.00 USD
Sale Sold out
Shipping calculated at checkout.

100 in stock

Free Shipping On Orders $50+

View full details
Specifications
  • System of Measurement: Metric
  • Roller Bearing Type: Spherical
  • Bearing Type: Roller
  • For Load Direction: Combined
  • Construction: Single Row
  • Bore Dia: 85 mm
  • Bore Dia Tolerance: -0.02 to 0
  • Outer Dia: 150 mm
  • Outer Dia Tolerance: -0.025 to 0
  • Width: 39 mm
  • Outside Diameter(d1): 134 mm
  • Shoulder Diameter Outer Ring (D1): 110 mm
  • Height Shaft Washer Cage(B1): 33.8 mm
  • Height Housing Washer(C): 20 mm
  • Distance From Shaft Washer End Side Face To Pressure Point(s): 50 mm
  • Chamfer Dimension Shaft Washer(r1,2): 1.5 mm
  • Roller Material: Steel
  • Cage Material: Steel
  • Dynamic Thrust Load: 85427 lbf
  • Static Thrust Load: 238297 lbf
  • Max Speed (X1000 rpm): 4
  • Lubrication: Required
  • Temperature Range: -30 to 100 °C
  • RoHS: Compliant
  • REACH: Compliant
  • Weight: 2.75 kg
DESCRIPTION
Explore a wide range of high-quality bearings for all your industrial, automotive, and machinery needs. Experience enhanced durability, high-precision, and superior efficiency with our 29317 E bearings. Visit us for all your bearing solutions.
