29326 E

29326 E

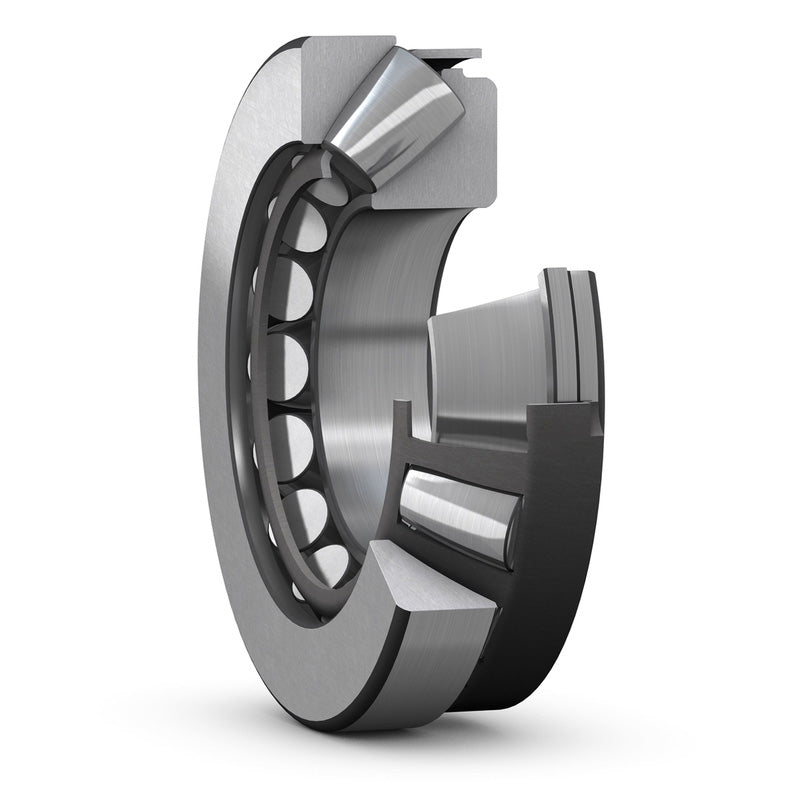

Spherical Roller Thrust Bearings - 130 mm ID, 225 mm OD, 58 mm Width
$468.00 USD
$468.00 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping On Orders $50+

View full details
Specifications
  • System of Measurement: Metric
  • Roller Bearing Type: Spherical
  • Bearing Type: Roller
  • For Load Direction: Combined
  • Construction: Single Row
  • Bore Dia: 130 mm
  • Bore Dia Tolerance: -0.025 to 0
  • Outer Dia: 225 mm
  • Outer Dia Tolerance: -0.03 to 0
  • Width: 58 mm
  • Height Tolerance: -0.125 to 0
  • Outside Diameter(d1): 203 mm
  • Shoulder Diameter Outer Ring (D1): 166 mm
  • Width Shaft Washer Or Length Of Shaft(B): 36.7 mm
  • Height Shaft Washer Cage(B1): 50.6 mm
  • Height Housing Washer(C): 30.1 mm
  • Distance From Shaft Washer End Side Face To Pressure Point(s): 75.6 mm
  • Chamfer Dimension Shaft Washer(r1,2): 2.1 mm
  • Roller Material: Steel
  • Cage Material: Steel
  • Dynamic Thrust Load: 19446 lbf
  • Static Thrust Load: 562022 lbf
  • Max Speed (X1000 rpm): 2.6
  • Lubrication: Required
  • Temperature Range: -30 to 100 °C
  • RoHS: Compliant
  • REACH: Compliant
  • Weight: 9 kg
DESCRIPTION
Explore a wide range of high-quality bearings for all your industrial, automotive, and machinery needs. Experience enhanced durability, high-precision, and superior efficiency with our 29326 E bearings. Visit us for all your bearing solutions.
