MB545DD

MB545DD

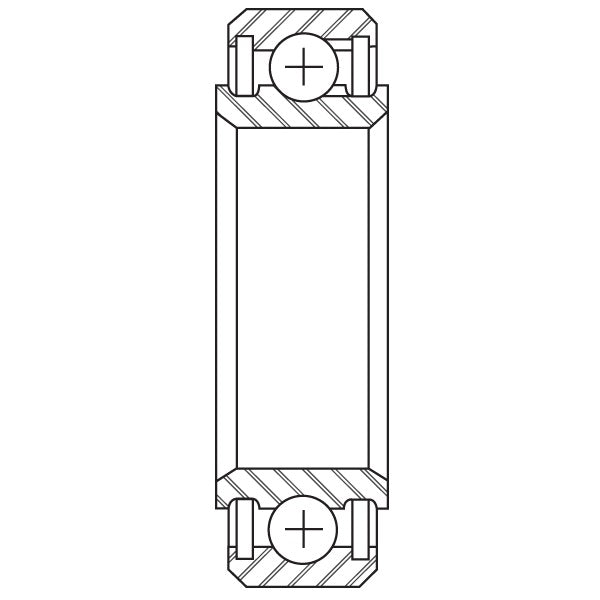

Airframe Control Ball Bearings - 2.0625" ID, 2.625" OD,
$224.00 USD
$224.00 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping On Orders $50+

View full details
Specifications
  • System of Measurement: Inch
  • Standard Reference: MS21428-45
  • Bore Dia: 2.0625"
  • Bore Dia Tolerance: -0.0008" to 0"
  • Outer Dia: 2.625"
  • Outer Dia Tolerance: -0.0007" to 0"
  • Ring Width Outer Height: 0.25"
  • Ring Width Outer Height Tolerance: -0.005" to 0"
  • Ring Width Inner Width: 0.281"
  • Ring Width Inner Width Tolerance: -0.0025" to 0"
  • Ball Complement No: 59
  • Ball Complement Dia: 1/8"
  • Ring Shoulder Outer: 2.413"
  • Ring Shoulder Inner: 2.299"
  • Ring Chamfer Outer: 0.015"
  • Ring Chamfer Outer Tolerance: 0" to 0.015"
  • Ring Chamfer Inner: 0.015"
  • Ring Chamfer Inner Tolerance: 0" to 0.015"
  • Radial Internal Clearance: 0.0001" to 0.0005"
  • Static Radial Load: 9220 lbs
  • Static Thrust Load: 4000 lbs
  • Dynamic Radial Ring Inner Load: 2340 lbs
  • Dynamic Radial Ring Outer Load: 2260 lbs
  • Max Starting Torque: 7 oz-in
  • Weight: 68.0389 g
DESCRIPTION
Explore a wide range of high-quality bearings for all your industrial, automotive, and machinery needs. Experience enhanced durability, high-precision, and superior efficiency with our MB545DD bearings. Visit us for all your bearing solutions.
