SR133

SR133

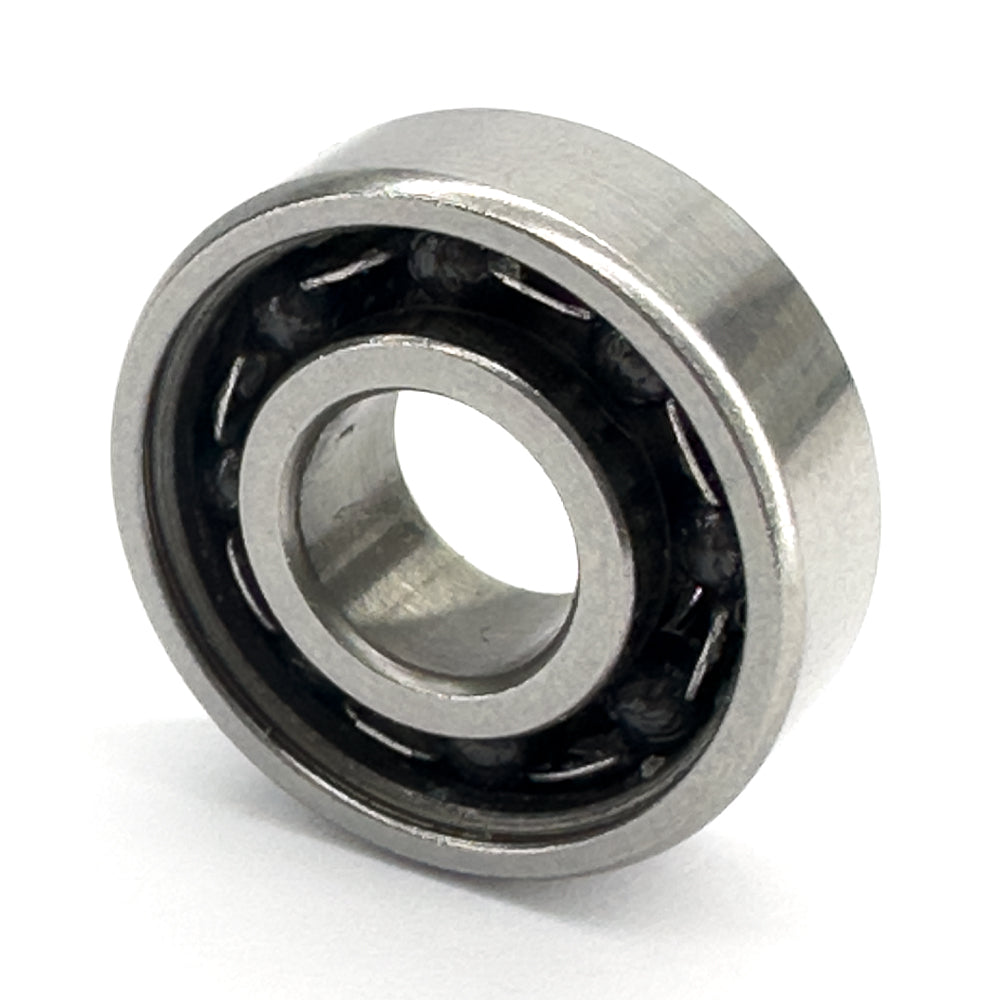

Stainless Steel Ball Bearings - 0.09375" ID, 0.1875" OD, 0.0625" Width
$1.50 USD
$1.50 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping On Orders $50+

View full details
Specifications
  • System of Measurement: Inch
  • PN Number: SR133 A3MC3AF2
  • Bearing Type: Ball
  • For Load Direction: Radial
  • Construction: Single Row
  • Inner Ring Type: Standard
  • Seal Type: Open
  • Bore Dia: 0.09375"
  • Bore Dia Tolerance: -0.0003" to 0"
  • Outer Dia: 0.1875"
  • Outer Dia Tolerance: -0.0003" to 0"
  • Width: 0.0625"
  • Width Tolerance: -0.005" to 0"
  • Ring Material: Stainless Steel
  • Ball Material: Stainless Steel
  • Cage Material: Stainless Steel
  • Dynamic Radial Load: 32 lbf
  • Static Radial Load: 10 lbf
  • Max Speed (X1000 rpm): 72
  • Lubrication: Required
  • Shaft Mount Type: Press Fit
  • Temperature Range: -86 to 230 °F
  • ABEC Rating: ABEC1
  • Radial Clearance Trade No: MC3
  • Radial Clearance: 0.00008" to 0.0005"
  • RoHS: Compliant
  • REACH: Compliant
  • Ball Dia: 0.03150"
  • Ball Qty: 7
  • Weight: 0.1 g
DESCRIPTION
Explore a wide range of high-quality bearings for all your industrial, automotive, and machinery needs. Experience enhanced durability, high-precision, and superior efficiency with our SR133 bearings. Visit us for all your bearing solutions.
