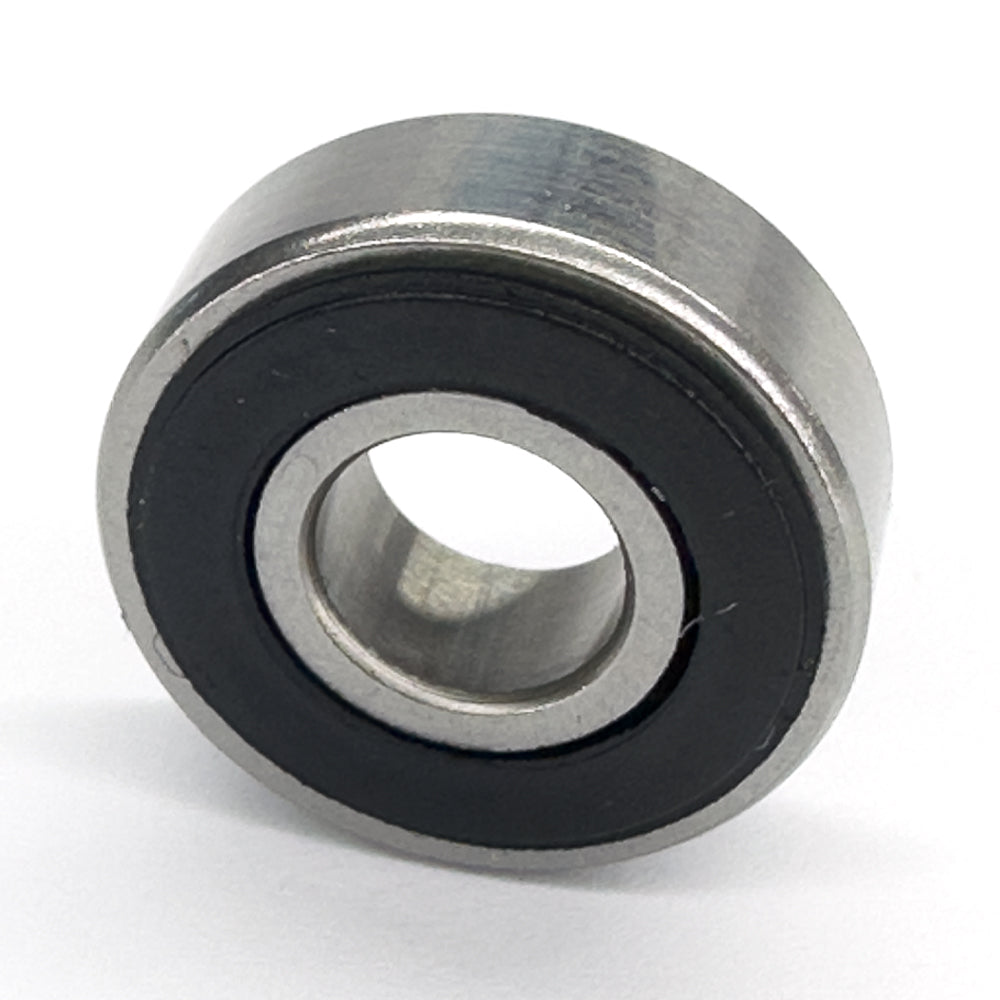

SR133 2rs
SR133 2rs
Stainless Steel Ball Bearings - 0.09375" ID, 0.1875" OD, 0.0937" Width
Regular price
$1.50 USD
Regular price
Sale price
$1.50 USD
Unit price
per
Free Shipping On Orders $50+
Specifications
- System of Measurement: Inch
- Bearing Type: Ball
- For Load Direction: Radial
- Construction: Single Row
- Inner Ring Type: Standard
- Seal Type: Sealed
- Bore Dia: 0.09375"
- Bore Dia Tolerance: -0.0003" to 0"
- Outer Dia: 0.1875"
- Outer Dia Tolerance: -0.0003" to 0"
- Width: 0.0937"
- Width Tolerance: -0.005" to 0"
- Ring Material: Stainless Steel
- Ball Material: Stainless Steel
- Cage Material: Stainless Steel
- Shield Material: Nitrile Rubber
- Dynamic Radial Load: 25 lbf
- Static Radial Load: 9 lbf
- Max Speed (X1000 rpm): 72
- Lubrication: Required
- Shaft Mount Type: Press Fit
- Temperature Range: -86 to 230 °F
- ABEC Rating: ABEC1
- Radial Clearance Trade No: MC3
- Radial Clearance: 0.00008" to 0.0005"
- RoHS: Compliant
- REACH: Compliant
- Ball Dia: 0.03150"
- Ball Qty: 7
- Weight: 0.1 g
DESCRIPTION
Explore a wide range of high-quality bearings for all your industrial, automotive, and machinery needs. Experience enhanced durability, high-precision, and superior efficiency with our SR133 2rs bearings. Visit us for all your bearing solutions.
